Get Started with RMM API

Managed Backup enables interaction with backend features using the RMM API. The API provides a set of requests that can be incorporated into user automation workflow or various remote management solutions.

This feature requires RMM API tokens generated.

This chapter covers the following topics:

• Access Requirements
• Add RMM API Tokens
• Revoke RMM API Tokens
• Test API Requests
• RMM API Metods
• Integration Scenarios

Access Requirements

Generating RMM API tokens is available only for provider accounts with a valid RMM license.

The Community Edition does not support API access. If you want to evaluate the API, request an MSP360 RMM trial.

API Credentials

To start using RMM API, perform the following steps:

1. Add RMM API token for an administrator.

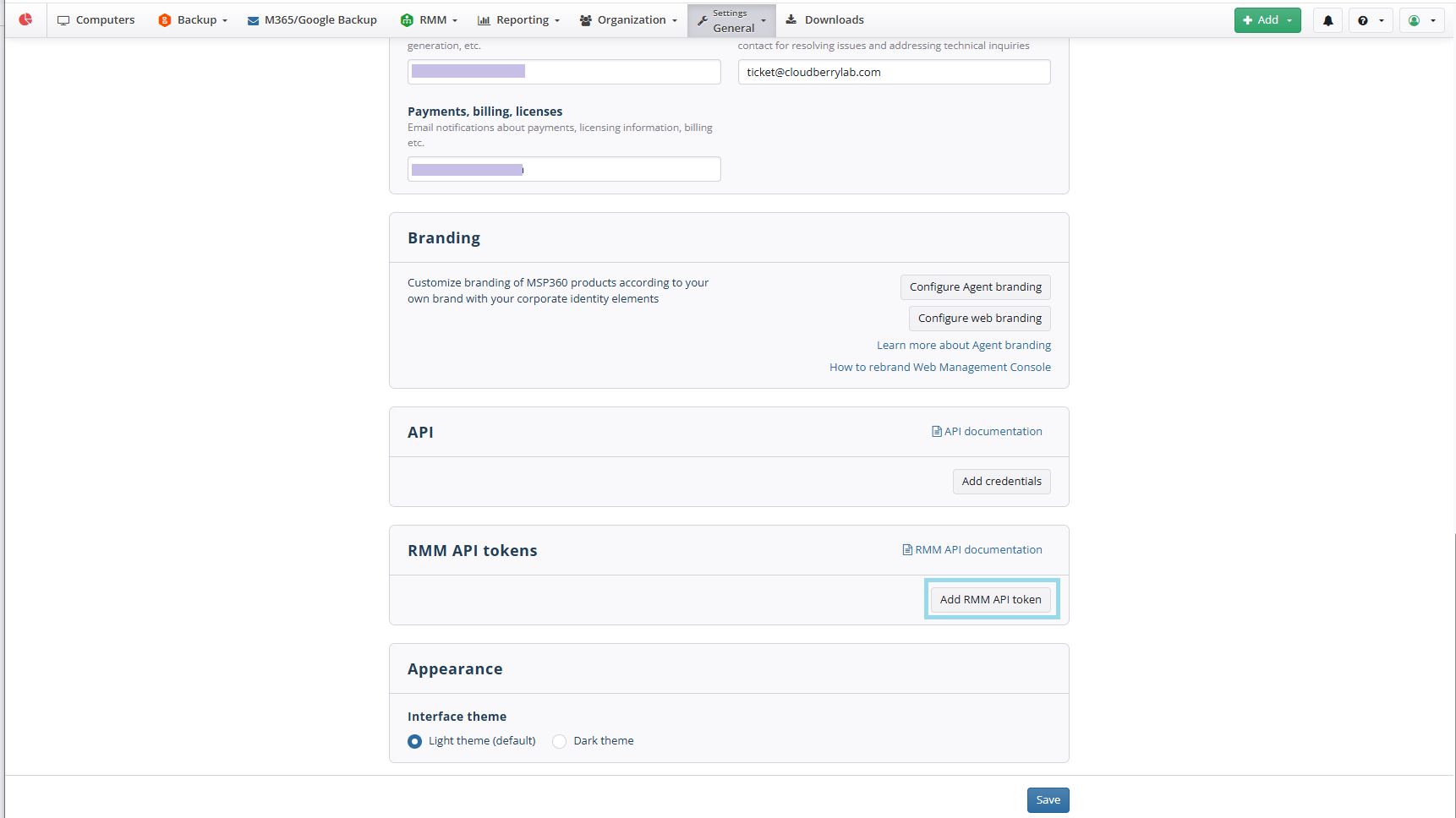

   • Navigate to RMM API tokens area on Setting > General.

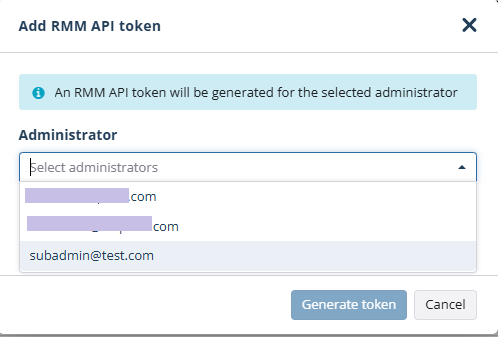

   • Click Add RMM API token and select the administrator who will use the token. Save the selection.

2. Save the settings.

If the RMM API Tokens option is unavailable, verify that the selected administrator has an assigned RMM license.

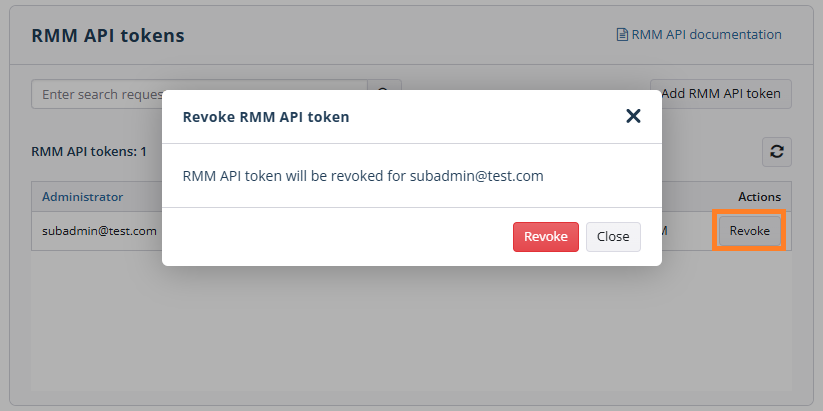

Revoke API Tokens

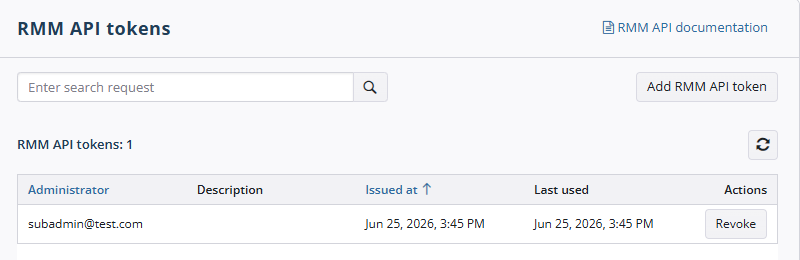

Generated RMM API Tokens can be revoked in RMM API tokens area on Setting > General, if needed.

1. Navigate to RMM API tokens area on Setting > General.
2. Click Revoke next to the token you want to revoke.

3. Confirm this action.

4. The administrator for whom this token will be generated can no longer use RMM API with this token.

Test API Requests

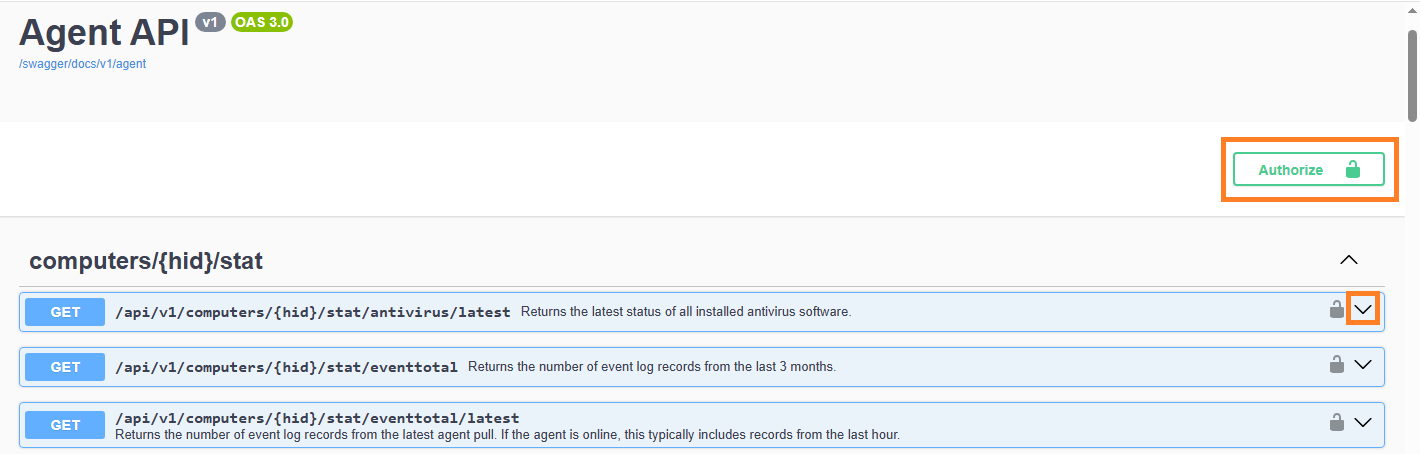

You can create test API requests using the Swagger tool.

The Swagger is located at https://api.rmm.mspbackups.com/swagger/

Use generated RMM API token to authorize, then expand the required method.

RMM API Methods

For most integrations, use the fleet-wide endpoints rather than querying individual devices.

Each statistics type is available through two endpoint variants:

Endpoint	Description	Recommended use
/api/v1/computers/stat/{type}/latest	Fleet-wide: Returns paginated data for every managed device	Recommended for dashboards, reporting, synchronization, and monitoring
/api/v1/computers/{hid}/stat/{type}/latest	Per-Device: Returns data for a single device by HID	Use only when retrieving additional details for a specific device

Using fleet-wide endpoints significantly reduces the number of API requests and eliminates the need to iterate through every managed device.

For the polling cadence, and rate-efficiency recommendations refer to the RMM API Best Practices article.

Fleet-Wide Endpoints (computers/stat)

Method	Endpoint	Description
GET	/api/v1/v1/computers/stat/antivirus/latest	Returns the latest status of all installed antivirus software
GET	/api/v1/computers/stat/eventtotals/latest	Returns the number of event log records from the latest agent pull. If the agent is online, this typically includes records from the last hour
GET	/api/v1/computers/stat/hardware/latest	Returns all hardware devices installed on all managed computers
GET	/api/v1/computers/stat/hdd/latest	Returns all local drives
GET	/api/v1/computers/stat/hddsmart/latest	Returns SMART data for all local drives
GET	/api/v1/computers/stat/host/latest	Returns system information including OS details, system type, manufacturer, model, serial number, IP/MAC addresses, time zone, location, and CPU temperature
GET	/api/v1/computers/stat/hyperv/latest	Returns all virtual machines from Microsoft Hyper-V
GET	/api/v1/computers/stat/memory/latest	Returns memory information including physical memory size, virtual memory size, and available physical memory (KB)
GET	/api/v1/computers/stat/printer/latest	Returns all installed printers
GET	/api/v1/computers/stat/runtime/latest	Returns a process tree with CPU usage (%) and memory usage (KB)
GET	/api/v1/computers/stat/service/latest	Returns services or daemons with startup type and current status
GET	/api/v1/computers/stat/software/latest	Returns all installed software, including names, architecture, and related details. May take some time to complete
GET	/api/v1/computers/stat/summary/latest	Returns a system summary including CPU usage, memory usage, disk usage, antivirus status, software update status, SMART status, and active/recent alerts
GET	/api/v1/computers/stat/update/latest	Returns all installed software updates, including names, architecture, and related details. May take some time to complete

Per-Device Endpoints (computers/{hid}/stat)

Method	Endpoint	Description
GET	/api/v1/computers/{hid}/stat/antivirus/latest	Returns the latest status of all antivirus software installed on the specific device
GET	/api/v1/computers/{hid}/stat/eventtotals	Returns the number of event log records from the last 3 months
GET	/api/v1/computers/{hid}/stat/eventtotals/latest	Returns the number of event log records from the latest agent pull. If the RMM Agent is online, this typically includes records from the last hour
GET	/api/v1/computers/{hid}/stat/hardware/latest	Returns all hardware devices installed the specified device
GET	/api/v1/computers/{hid}/stat/hdd/latest	Returns all local drives of the specified device
GET	/api/v1/computers/{hid}/stat/hddsmart/latest	Returns SMART data for all local drives of the specified device
GET	/api/v1/computers/{hid}/stat/host/latest	Returns system information including OS details, system type, manufacturer, model, serial number, IP/MAC addresses, time zone, location, and CPU temperature of the specified device
GET	/api/v1/computers/{hid}/stat/hyperv/latest	Returns all virtual machines from Microsoft Hyper-V on the specified device
GET	/api/v1/computers/{hid}/stat/memory/latest	Returns memory information including physical memory size, virtual memory size, and available physical memory (KB) of the specified device
GET	/api/v1/computers/{hid}/stat/printer/latest	Returns all printers available for the specific device
GET	/api/v1/computers/{hid}/stat/runtime/latest	Returns a process tree with CPU usage (%) and memory usage (KB) of the specified device
GET	/api/v1/computers/{hid}/stat/service/latest	Returns services or daemons with startup type and current status of the specified device
GET	/api/v1/computers/{hid}/stat/software/latest	Returns all installed software, including names, architecture, and related details of the specified device. May take some time to complete
GET	/api/v1/computers/{hid}/stat/summary/latest	Returns a system summary including CPU usage, memory usage, disk usage, antivirus status, software update status, SMART status, and active/recent alerts of the specified device
GET	/api/v1/computers/{hid}/stat/update/latest	Returns all installed software updates, including names, architecture, and related details of the specified device. May take some time to complete

Integration Scenarios

Refer to the following articles for the integration scenarios for administrators, with the endpoints, polling patterns, and limits behind each one:

1. Asset & inventory sync (CMDB + PSA)
2. Patch & Windows update status monitoring
3. Live dashboard (Grafana)
4. BI / data warehouse export (PowerBI)
5. Auto-create ticket in PSA upon RMM alert
6. Security Operations Center live view
7. Native report publishing for clients
8. IT Ops Center TV wallboard
9. SLA / QBR client-facing dashboard
10. Backup job status monitoring (Managed Backup)
