Create New Brand

To create a new brand, proceed as follows:

  1. Open the Management Console.
  2. In the Settings menu, select Branding.

  1. Click +.

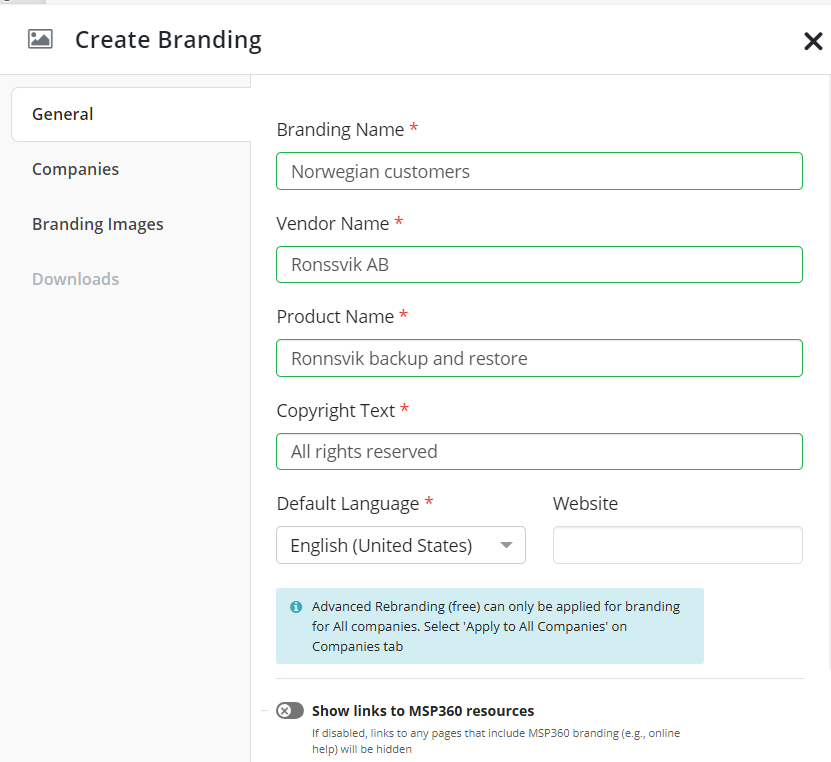

  2. In the Create Branding panel, specify all required data. Mandatory fields are marked with a * sign.

Fields explication:

  • Branding Name. The displayed name of the brand in the Management Console
  • Vendor Name. The provider name
  • Product Name. The name that is used for Backup Agent (for example, MyCompany Backup Service)
  • Copyright Text. Your legal notes
  • Default Language. The GUI interface language of the rebranded Backup Agent
  1. Once you are done, click Create.

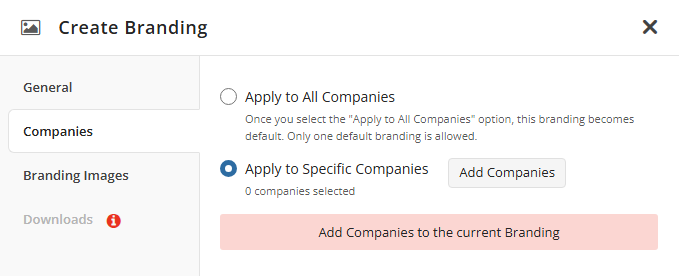

  2. On the next tab (Companies), specify the companies the new brand will be applied.

The following options are available:

  • Apply to All Companies. Select this option if you intend to apply the new brand to all companies on your list

To view the list of your companies, select Companies in the Organization menu of the Management Console

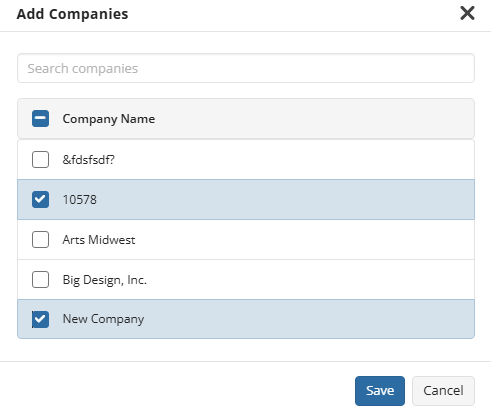

  • Apply to Selected Companies. Select this option to apply the new brand only for specific companies from your list. To edit the list of companies, click Edit

  1. Once you are done, click Save.
  2. Click Create.

Upload Graphics

To Upload Graphics for the New Brand

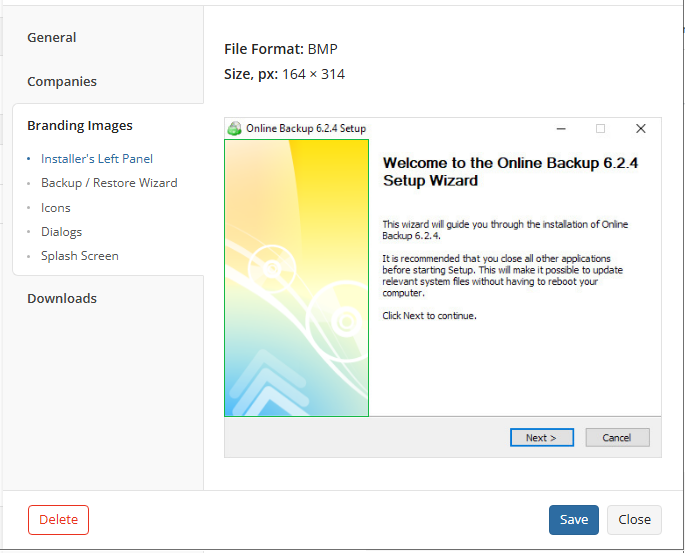

  1. Switch to the Branding Images tab.

  1. In the left menu, select sequentially the graphical elements to upload. Their position and requirements are shown in the example pictures. To upload an image, navigate the cursor to the position of the graphical element, then click Upload A File Here.

To view the requirements, see the table below.

GUI Element File Format Image Size (pixels) File Size
Installer Left Panel BMP 164x314 500 Kb
Backup / Restore Wizard: Left Image PNG 148x485 500 Kb
Backup / Restore Wizard: Banner Image PNG 141x72 140 Kb
Icons: System Tray Icon ICO 16x16 100 Kb
Icons: Main Icon ICO 8, 16 or 32 bit 16x16; 32x32 48x48
Dialogs PNG 413x77 500 Kb
Splash Screen PNG 436 x 310 500 Kb

Once you uploaded all graphical elements for the new brand, click Save.
